Beskrivning

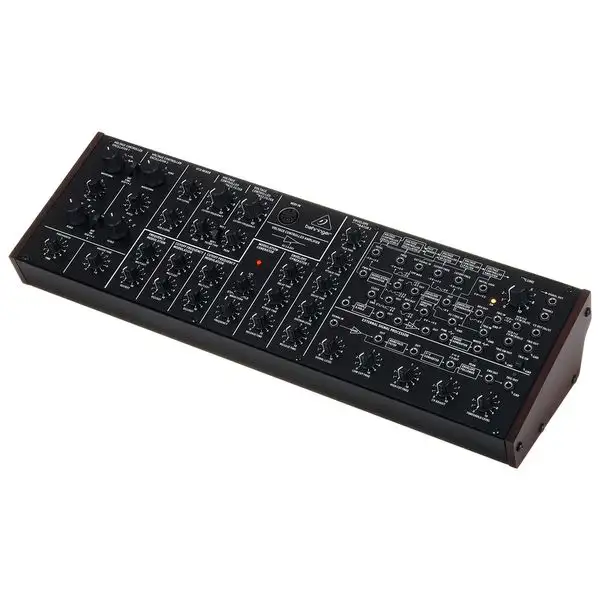

Semi-Modular Analogue Synthesiser
- Dual VCO design
- Authentic recreation of the circuitry of the ”Model 15” modular synthesiser
- All analogue signal path based on authentic VCO, VCF and VCA designs
- Two oscillators with 4 waveforms, oscillator-sync, pulse width modulation and sub-oscillator
- Classic 24 dB ladder filter
- Extended step sequencer with 3 separate 256 step memory locations, transpose and multiple playback modes
- Arpeggiator with hold function and several playback modes, modes for recording and playback
- Fully analogue LFO with 4 waveforms and controls for pitch, filter and pulse width modulation
- Spring reverb emulation
- 48 Patch points for extended modular connection and integration of external devices
- 16-Voice poly chain allows multiple synthesisers to be combined for up to 16-voice polyphony
- Eurorack compatible housing
- Dimensions (W x H x D): approx. 424.4 x 94 x 135.6 mm
- Weight: 1.76 kg
Connections:
- 1 x Line input: 6.3 mm jack
- 2x Line output: 6.3 mm jack
- Stereo headphone output: 6.3 mm jack
- MIDI In/Out/Thru
- USB
30 30 dagar öppet köp 3 3 års Thomann garanti
- Tillgänglig sedanAugusti 2024
- Artikelnummer 592048
- försäljningsenhet1 Styck
- Design Desktop
- Polyphony 1
- Sound Generation Analog, Synthesis
- MIDI interface 1x In, 1x Out, 1x Thru
- Storage Medium None
- USB-port Yes
- Effects Yes
- Arpeggiator Yes
- Number of Analog Outputs 1
- Digital Output No
- Display No
- Optional Expansions 0
- Special Features semi modular, Eurorack compatible
