Beskrivning

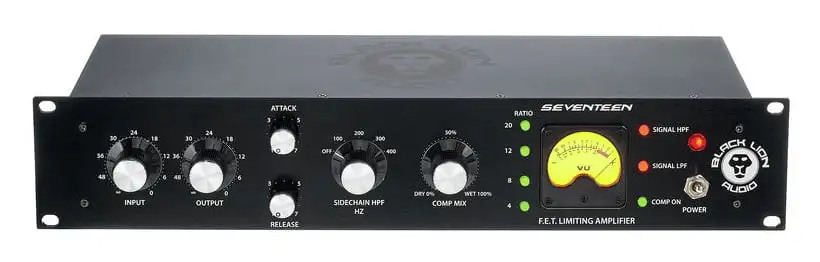

• FET Compressor based on a legendary model
• Optimized circuit with new output transformer
• Extended functionality with variable high-pass filter in the sidechain, parallel compression and switchable low- and high-pass filter in the signal path
• Classic switching of the ratio via four pressure switches
• Attack and release continuously adjustable
• Link connection for coupling two devices for stereo operation
• Sidechain filter switchable: Off, 100, 200, 300 and 400 Hz
• Lowpass filter: 100 Hz, -6 dB / oct
• Highpass filter: 10 kHz, -6 dB / oct
• Frequency range: 20 – 22,000 Hz +/- 1 dB
• Signal-to-noise ratio:> 86 dB
• THD + N: 0.4%
• Input: 1 x XLR (balanced)
• Output: 1 x XLR
• Link: Cinch (unbalanced)
• Power supply: 115/230 VAC internal
• Width: 19″
• Height: 2 HE
• Depth: 250 mm
• Weight: 6.58 kg
