Beskrivning

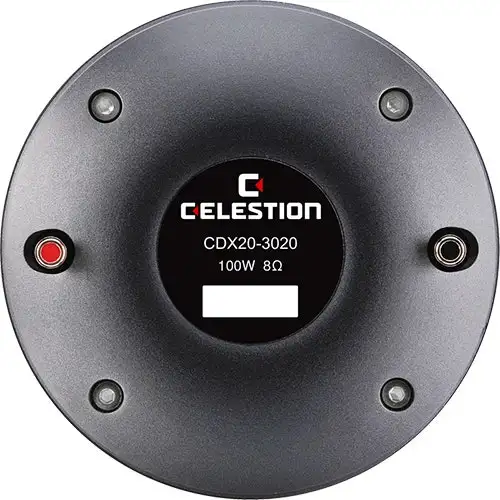

Finite element analysis (FEA) used to optimise magnetic, acoustic and electromechanical design.Next generation Sound CastleTM soft clamping assembly reduces diaphragm stress for decreased distortion and even greater reliability of performance.

• Power rating: 100W RMS
• Nominal impedance: 8ohm
• Frequency range: 500-18,000Hz
• Sensitivity: 107dB
• Recommended min. crossover: 800Hz (12dB/oct)
• Voice coil diameter: 75mm/3in
• Voice coil material: Edgewound copper clad aluminium
• Diaphragm material: Titanium
• Surround material: Titanium
• Overall width: 180mm/7in
• Overall depth: 68mm/2.7in
• Fitting:Flange (4 x M6 holes on 102mm, 4in PCD
• Throat exit: 50mm/2in
• Unit weight: 4,9kg
