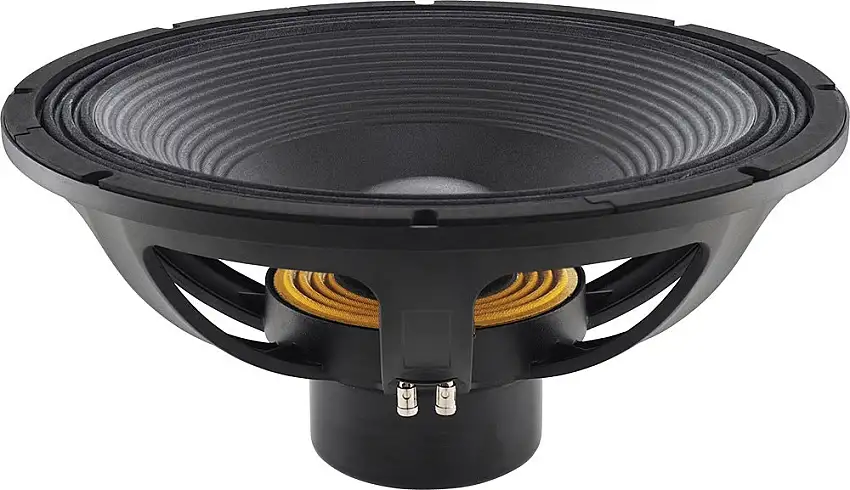

Advanced temperature control using 3-channel tuned venting system provides highly efficient cooling across the frequency band. Voice coil typically operates at 30°C lower temperature than other leading drivers in this class. Polysiloxane laminated triple suspension provides much greater stability and improved cone displacement symmetry. Lead-out wires precision woven into suspension minimises excess motion and reduces fatigue. Double-sided, weatherproof cone coating enhances durability.

• Nominal diameter: 530mm / 21in
• Power rating: 1800W
• Continuous power rating: 3600W
• Rated impedance: 8Ω
• Sensitivity: 97dB
• Frequency range: 30-1,000Hz
• Chassis type: Cast aluminium
• Magnet type: Neodymium
• Voice coil diameter: 115mm / 4.5in
• Voice coil material: Round copper
• Former material: Glass fibre
• Cone material: Glass loaded cellulose, water-resistant coating front & back
• Surround material: Triple roll, cloth sealed
• Suspension: Triple, polysiloxane-laminated
• Gap height (Hg): 12mm / 0.46in
• VC winding height (Hvc): 36mm / 1.42in
• 13,8 kg
