Beskrivning

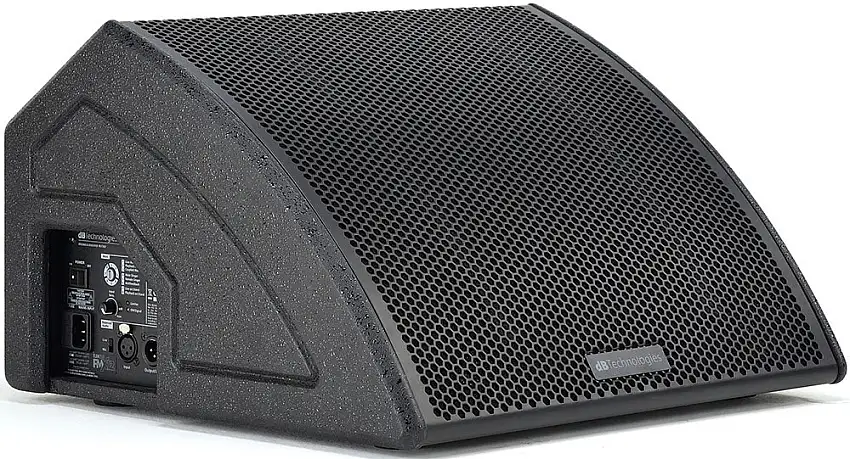

dB Technologies FMX12
A new generation for flagship wedge Flexsys; FMX series encompasses a range of tailored monitoring solutions featuring coaxial design, precise dispersion pattern, last-generation sound processing with linear phase FIR Filters and maximum adaptability to the needs of every performer.
FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.
The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.
In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.
Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.
All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.
Technical Data
- Speaker Type: 2-Way Active Coaxial Stage Monitor
- Frequency Response: [- 10 dB] 52 – 19.000 Hz
- Max SPL: 128 dB
- Directivity: 60°X90°
- Horn Rotatable
- HF: 1″, 1,3″ v.c.
- LF: 12″, 2″ v.c.
- Amp Class: Class D
- Peak Power: 1200 W
- Controller DSP: 28/56 bit
- AD/DA Converter24 bit/48 kHz
- Housing: Plywood
- Housing Design: Multifunctional
- Handles: 1 integrated on bottom side
- Pole mount: 36 mm
- Width 465 mm, Height 297 mm, Depth 444 mm
- Weight: 13,9 kg
