Beskrivning

Eurorack Module

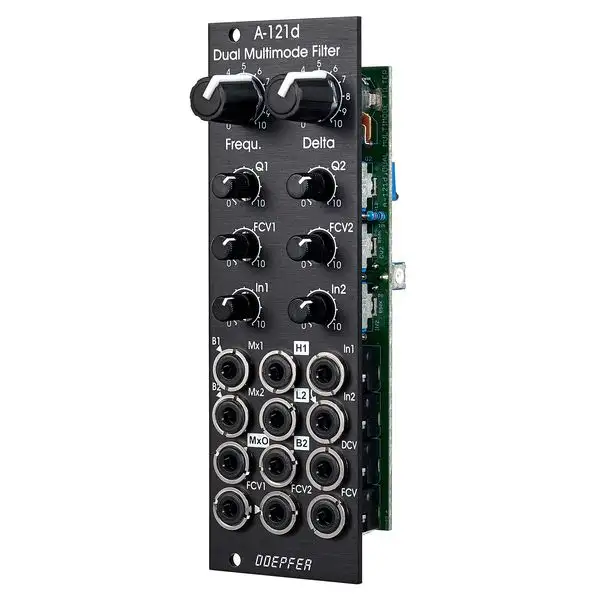

Dual Multimode Filter
Contains 2 independent resonance filters
VCF 1 with band-pass and high-pass filter, VCF 2 with band-pass and low-pass filter
Cutoff control for both filters and delta control for setting the frequency difference
CV inputs with attenuators for cutoff, delta, filter 1 and filter 2
Level controls for input 1 and input 2
Integrated mixer with 2 inputs (normalised to bandpass filters 1 & 2) and mix output
Integrierter Mischer mit 2 Eingängen (normalisiert auf Bandpassfilter 1 & 2) und Mischausgang
Current requirement: 30 mA (+12 V) / 30 mA (-12 V)
Width: 8 HP
Depth: 45 mm
