Beskrivning

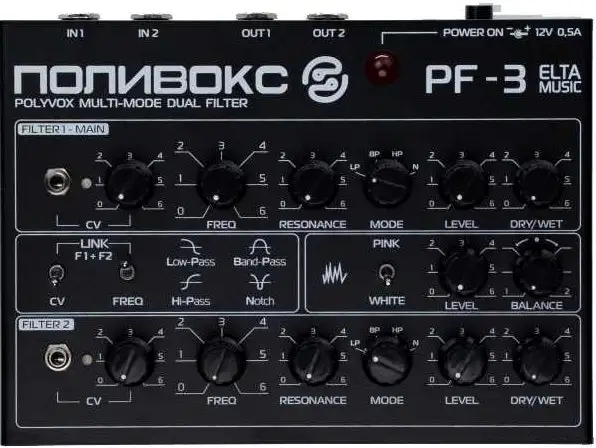

The PF-3 mk.2 is a stereo analog filter with four different filter modes onboard: lowpass, bandpass, highpass, and notch. These are available on both channels, it’s a stereo processor. You can link both filters with a switch so you can control two filters and CV simultaneously with a single knob.
Each filter can be controlled with dedicated frequency, resonance, level, and dry/wet controls. You can set the cutoff control either to soft or hard via a switch. There is also a noise generator with two flavors (pink/white) with dedicated level and balance control. The latter allows you to balance the signal per channel.
- FILTER modes – Lowpass, Bandpass, Hi-pass, Notch.
- NOISE generator – pink, white and channel balancing.
- FILTER 1 and FILTER 2 – CV controls.
- LINK switches to control two filters and CV at the same time with one slice knob.
Technical specifications:
- Input audio signal level: Max 1.5 V
- Modulation CV input: – 5 to +5 V or 0 to + 10V
- Power supply: universal mains adapter 100-220V / 12V 1A out
- Filter weight: 0,7kg
- Packed weight: 1 kg
- Dimensions: 175x135x50mm
