Beskrivning
10 kopplingspanel

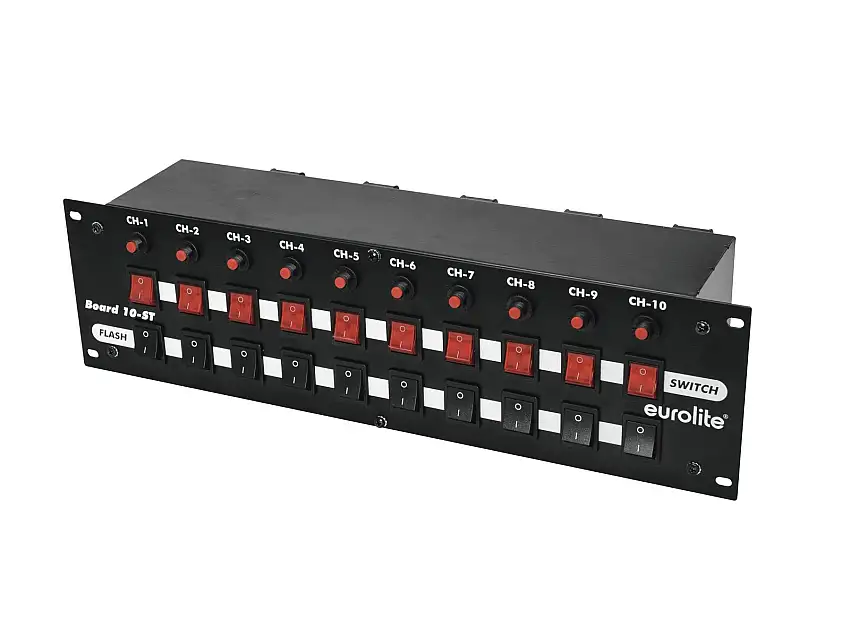

10-fold switching panel, (10 x flash buttons), for separate switching of 10 safety sockets
- Fully cabled housing with 10 safety-sockets
- 10 switches with flash-buttons
- 10 manually resetable fuses with 6.3 A
- Control via on/off switch on device
Scope of delivery
- 1 x device
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 3680 W |
| Protection class: | Protection class I |
| Output power: | Max. 1150 W per channal |
| Output current: | Max. 5 A per channal |
| Power connection: | Fixed power supply cord with safety plug |
| Power output: | 10 x safety contact (F), hinged lid mounting version fused |
| Power output fuse per channel: | Circuit breaker, 6.3 A fuse resettable |
| Control: | On/off switch on device |
| Control channels: | 10 |
| Color: | Black |
| Dimensions: | Width: 48.3 cm Depth: 14 cm Height: 13.35 cm |
| Weight: | 2.96 kg |
