Beskrivning

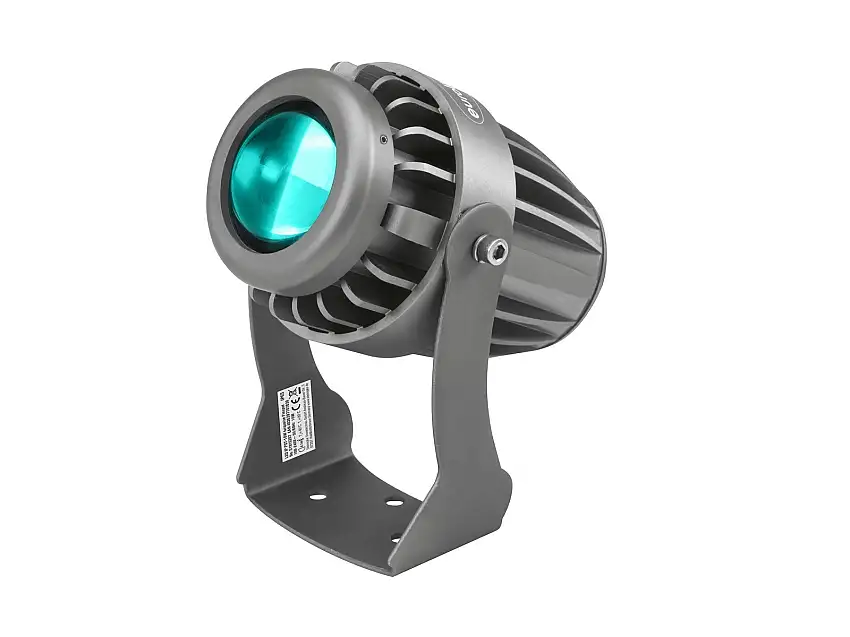

Weather-proof pinspot (IP65) with strong 10 W LED in turquoise
- Compact aluminum housing
- 1 powerful LED 10 W high-power turquoise
- Beam effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With mounting bracket
- Suitable for outdoor use IP65
- For application areas such as: Clubs/dancing school; architecture; restaurants, bars and hotels; decoration
- Silent operation
- Application possibility: Suspended
Scope of delivery
- 1 x spotlight
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1.0 mm² H05RN-F |
| Cable length: | Approx. 1 m |
| Lamp type: | LED lamp |
| LED type: | 1 x 10 W high-power turquoise |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | 4° |
| Beam angle (1/10 peak): | 6° |
| Illuminance in Lux (lx): | 1m: 24366 lx, 3m: 2317 lx, 6m: 555 lx |
| Housing color: | Grey |
| Attachment system: | Mounting bracket |
| Material: | Metal |
| Dimensions: | Width: 10.5 cm Depth: 15 cm Height: 14.7 cm |
| Weight: | 0.73 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø6mm |
| Material: | Metal, 2 mm |
