Beskrivning

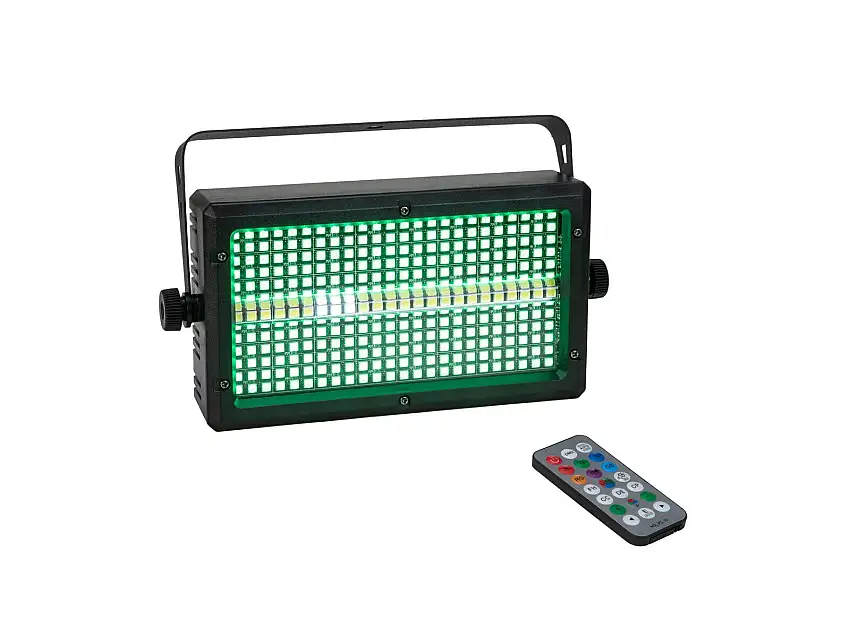

Mini LED stroboscope with bright SMD LEDs, incl. WRC-10 wireless remote control
- 288 powerful LEDs 0.2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- 48 powerful LEDs 0.5 W SMD 3535 cold white (CW)
- Dimmer electronic; colors adjustable; color blend; color change
- Strobe effect
- The device is cooled by cooling fan
- Control via wireless remote control; DMX; stand-alone; master/slave function; sound to light
- Preprogrammed in Light Captain
- With a beam angle of 65°
- With mounting bracket
- 4 digit 7-segment LED display
Scope of delivery
- 1 x light effect
- 1 x power cord
- 1 x remote control
- 2 x knurled screw
- 2 x washer
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, F 1 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 288 x 0.2 W SMD 5050 3in1 TCL RGB (homogenous color mix) 48 x 0.5 W SMD 3535 cold white (CW) |
| Flash rate: | 0 – 30 Hz |
| DMX channels: | 11 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan |
| Control: | Wireless remote control; DMX; stand-alone; master/slave function; sound to light |
| Preprogrammed in: | Light Captain |
| Beam angle: | 65° |
| Beam angle (1/2 peak): | 65° |
| Beam angle (1/10 peak): | 120° |
| Color temperature: | 9359K |
| Housing color: | Black matte |
| Attachment system: | 1x mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Status LED: | DMX |
| Material: | Plastic hard |
| Dimensions: | Width: 26.2 cm Depth: 6 cm Height: 16 cm |
| Weight: | 0.89 kg |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm |
| Power cord | |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 1.2 m |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
