Beskrivning

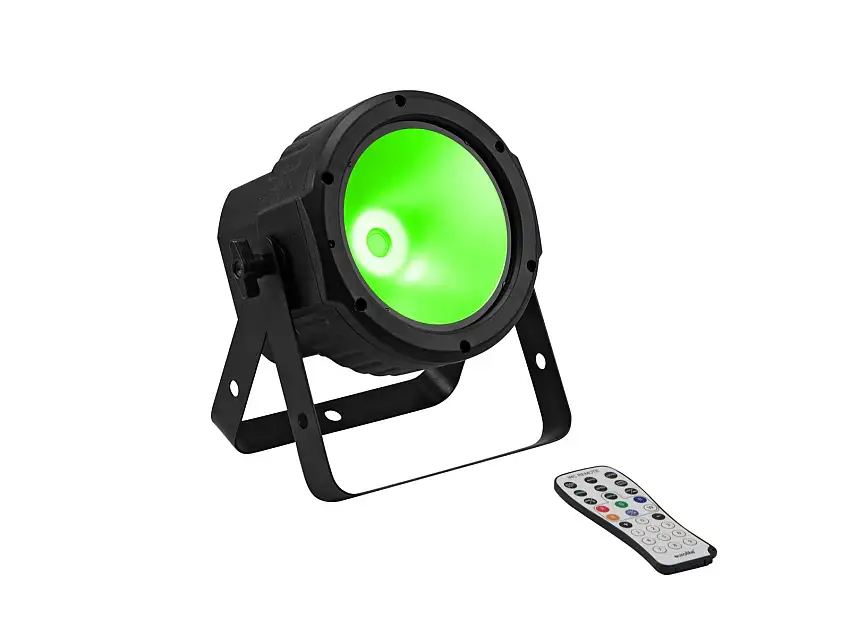

LED-golvspot med RGBW-färgblandning, inklusive IR-fjärrkontroll

1 kraftfull 30 W RGBW LED (4in1)

Flimmerfri projektion, perfekt för studio, teater och film

Integrerade showprogram i auto- och musikläge

Direkt färgval för 18 färger

Steglös RGBW-färgblandning, färgbyte, färgblekning, dimmer och stroboskopeffekt

Adressering och inställningar via styrenhet med 4-siffrig LED-display

Bekväm fjärrkontroll via den medföljande IR-fjärrkontrollen EUROLITE IR-7

DMX och nätverksanslutningar optimerade för enkel kabeldragning

Kompatibel med QuickDMX – radio DMX-systemet från Eurolite

Fantomdrivet USB-uttag för QuickDMX-mottagare (tillbehör)

Vridbart monteringsfäste

Extra fäste för placering på golvet

IEC-strömanslutningar för enkel sammankoppling av upp till 8 enheter

LED: tvätteffekt 1 x COB (chip-on-board) 30 W 4in1 QCL RGBW (homogen färgblandning)

I 3; 4; 5; 6; 9 CH DMX-läget kan användas

LED floor spot with 4in1 QCL RGBW color mixing, incl. IR remote control

• DMX and power terminals intelligently designed for easy wiring
• 1 powerful LED 30 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
• Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
• Multi beam effect; strobe effect
• 5 integrated show programs
• Direct color selection for 18 preset colors
• The device is cooled by cooling fan
• Control via IR remote control; DMX; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in Colorchief; LED PC-Control 512; EASY SHOW 1; Light´J; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
• Flicker-free
• With a beam angle of 18°
• With double bracket
• 4 digit 7-segment LED display
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; party room; restaurants, bars and hotels
• Application possibility: Standing; suspended; on stand

Scope of delivery

• 1 x spotlight
• 1 x power cord
• 1 x remote control
• 1 x battery
• 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	25 W
IP classification:	IP20
Protection class:	Protection class II
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Power output:	IEC connector (F) mounting version
Fuse:	T 1 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 30 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Flash rate:	0 – 20 Hz
DMX channels:	3; 4; 5; 6; 9
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	1 x cooling fan
Control:	IR remote control; DMX; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Colorchief; LED PC-Control 512; EASY SHOW 1; Light´J; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:	Flicker-free
Beam angle:	18°
Beam angle (1/2 peak):	18°
Beam angle (1/10 peak):	65°
Housing color:	Black
Attachment system:	Double bracket
Display type:	4 digit 7-segment LED display
Material:	Plastic
Dimensions:	Width: 21.5 cm Depth: 12.7 cm Height: 22.85 cm
Weight:	1.10 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Photobiological safety:	Risk Group 0
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 1.2 m
Mounting bracket
Diameter mounting holes:	1 x Ø11mm; 2 x Ø10mm
Material:	Metal, 1.5 mm
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
