Beskrivning

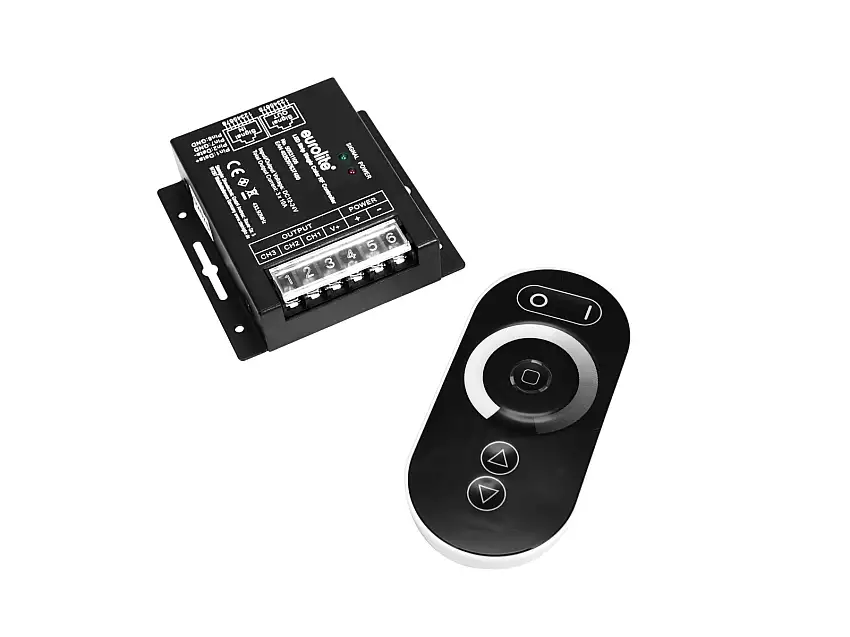

3-channel LED controller with wireless remote control for 3 single-colored LED strips 12-24V
- For controlling up to 3 single-colored LED strips 12-24 V
- Brightness selection via touch-sensitive color wheel
- RJ45 jacks for serial connection
- Program speed adjustable; Dimmer electronic
- 3 integrated show programs
- Control via wireless remote control
- Operating range up to 20m
Scope of delivery
- 1 x remote control
| Power supply: | 12/24V DC |
| Power consumption: | Max. 360 W 12 V DC Max. 720 W 24 V DC 120 W 12 V DC per channal 240 W 24 V DC per channal |
| Output current: | Max. 3 x 10 A per channal |
| Power connection: | Via screw terminal |
| Control: | Wireless remote control |
| Range: | Range up to 20m |
| Carrier frequency: | 433.920 MHz |
| Connections: | Screw terminal |
| Dimensions: | Length: 9 cm Width: 9 cm Height: 2.4 cm |
| Weight: | 0.30 kg |
| Remote control | |
| Battery: | 3 x 1.5 V AAA Micro LR03 alkaline manganese built-in |
| Dimensions: | Height: 2.2 cm |
