Beskrivning

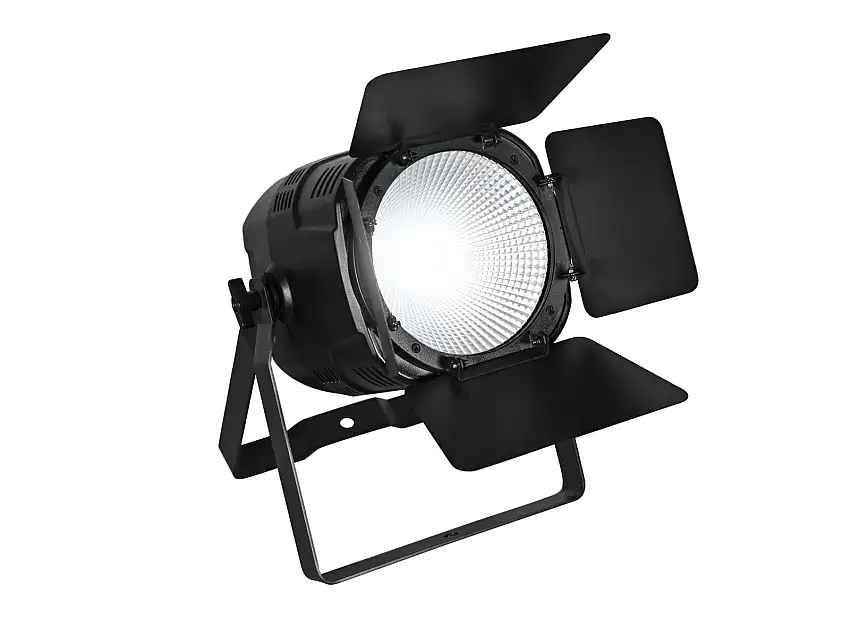

LED teaterspotlight med varm och kall vit 100 watt COB LED

Perfekt som vitt ljus på teatern, på konsertscener och många andra platser där gott, vitt ljus krävs

1 kraftfull 100 W COB LED med variabel färgtemperatur

Auto, musik, master/slav och DMX-lägen

Integrerade showprogram i auto- och musikläge

Dimmer och stroboskopeffekt

Adressering och inställningar via styrenhet med 4-siffrig LED-display

2, 4, 5 eller 7 DMX-kanaler kan väljas

Kompatibel med QuickDMX – radio DMX-systemet från Eurolite

Fantomdrivet USB-uttag för QuickDMX-mottagare (tillbehör)

Extra fäste för placering på golvet

P-Con nätverksanslutningar för enkel seriekoppling av upp till 8 enheter

Mycket högt färgåtergivningsindex (CRI> 90)

1 2; 4; 5; 7 CH DMX-läget kan användas

Enheten kyls av en fläkt

Kan styras via fristående; DMX; Master / slav funktion; Musikstyrning via mikrofon; QuickDMX över USB

Är redan förprogrammerad i Light J-mjukvaran

Flimmerfri projektion, perfekt för film och studio

LED theatre spot with 2in1 BCL CW/WW 100 W COB (chip-on-board) LED

• 1 powerful LED 100 W COB (chip-on-board) 2in1 BCL CW/WW
• Dimmer electronic
• Strobe effect
• Integrated show programs
• The device is cooled by cooling fan
• Control via stand-alone; DMX; master/slave function; sound to light via microphone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
• Preprogrammed in Light´J; Light Captain; Colorchief
• Flicker-free
• With a beam angle of 41°
• Variable color temperature 2500 K – 5700 K
• Very high color rendering index (CRI)
• With double bracket
• 4 digit 7-segment LED display
• Mains input and output for power linking up to 8 units
• For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; restaurants, bars and hotels; video and photography; advertisement/Shop window
• Application possibility: Standing; suspended; on stand

Scope of delivery

• 1 x spotlight
• 1 x power cord
• 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	85 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	T 1 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 100 W COB (chip-on-board) 2in1 BCL CW/WW
Flash rate:	0.5 – 23 Hz
DMX channels:	2; 4; 5; 7
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; master/slave function; sound to light via microphone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in:	Light´J; Light Captain; Colorchief
Projection:	Flicker-free
Beam angle:	41°
Beam angle (1/2 peak):	41°
Beam angle (1/10 peak):	65°
Color temperature:	2500K – 5700K adjustable
Color rendering index (CRI):	95 Ra
Illuminance in Lux (lx):	Cold white (CW) 1m: 2573 lx, 3m: 296 lx, 6m: 90 lx Warm white (WW) 1m: 1413 lx, 3m: 176 lx, 6m: 53 lx All 1m: 3366 lx, 3m: 407 lx, 6m: 107 lx
Housing color:	Black matte
Attachment system:	Double bracket
Display type:	4 digit 7-segment LED display
Material:	Plastic; metal
Dimensions:	Width: 24.3 cm Depth: 31.1 cm Height: 32.0 cm
Weight:	2.75 kg
Noise classification:	Class 2 (slight noise)
Photobiological safety:	Risk Group 0
Mounting bracket
Diameter mounting holes:	1 x Ø11mm
Material:	Metal, 2.5 mm
Barndoor
Material:	Metal, 0.8 mm
Power cord
Cable construction:	3 x 1.0 mm² H03VV-F
Cable length:	Approx. 1.2 m
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
