Beskrivning

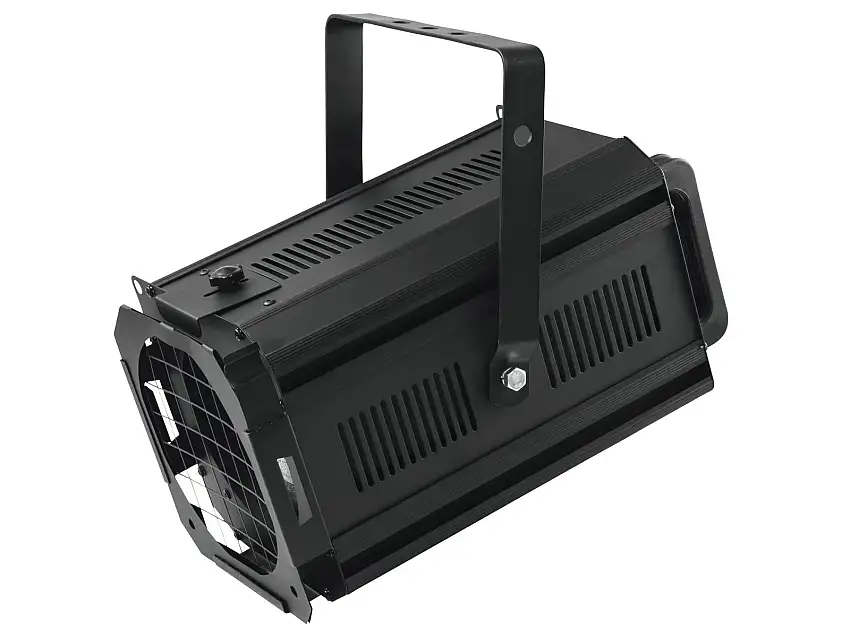

Theater spot for halogen lamps with 650 or 1000 watts power
- Professional theatre spot with color filter frame and protective grille
- Impressive light output
- Robust version
- Easy lamp replacement
- Antihalo lens for punctual illumination (light inside the beam is brighter than outside)
- Focus manual
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 10° – 42°
- With mounting bracket
- For application areas such as: Stage; decoration; wedding/gala/events; Trade fair and shop fitting; theater; video and photography
- Silent operation
Scope of delivery
- 1 x spotlight
- 1 x filter frame
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 1000 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Suitable lamp: | Max. 230 V/1000 W lamp envelope GX9.5 |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1.0 mm² H05SS-F |
| Cable length: | Approx. 0.9 m |
| Base: | GX9.5 |
| Lamp type: | Halogen lamp |
| Equipment: | Focus manual |
| Color generation: | Via color filter frame |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 10° – 42° |
| Beam angle (1/2 peak): | 10 – 40° |
| Beam angle (1/10 peak): | 15 – 42° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Diameter mounting holes: | 1 x Ø10mm |
| Material: | Metal; aluminum |
| Dimensions: | Length: 37 cm Width: 25.5 cm Height: 34 cm |
| Weight: | 4.60 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 4 x Ø12mm |
| Material: | Metal, 3 mm |
| Filter frame | |
| Diameter mounting holes: | 4 x Ø8mm |
| Grid size: | 22 x 22 mm |
| Material: | Metal, 0.5 mm |
| Color: | Black |
| Dimensions: | Width: 19.6 cm Height: 19.6 cm Diameter: Ø 17.1 cm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
