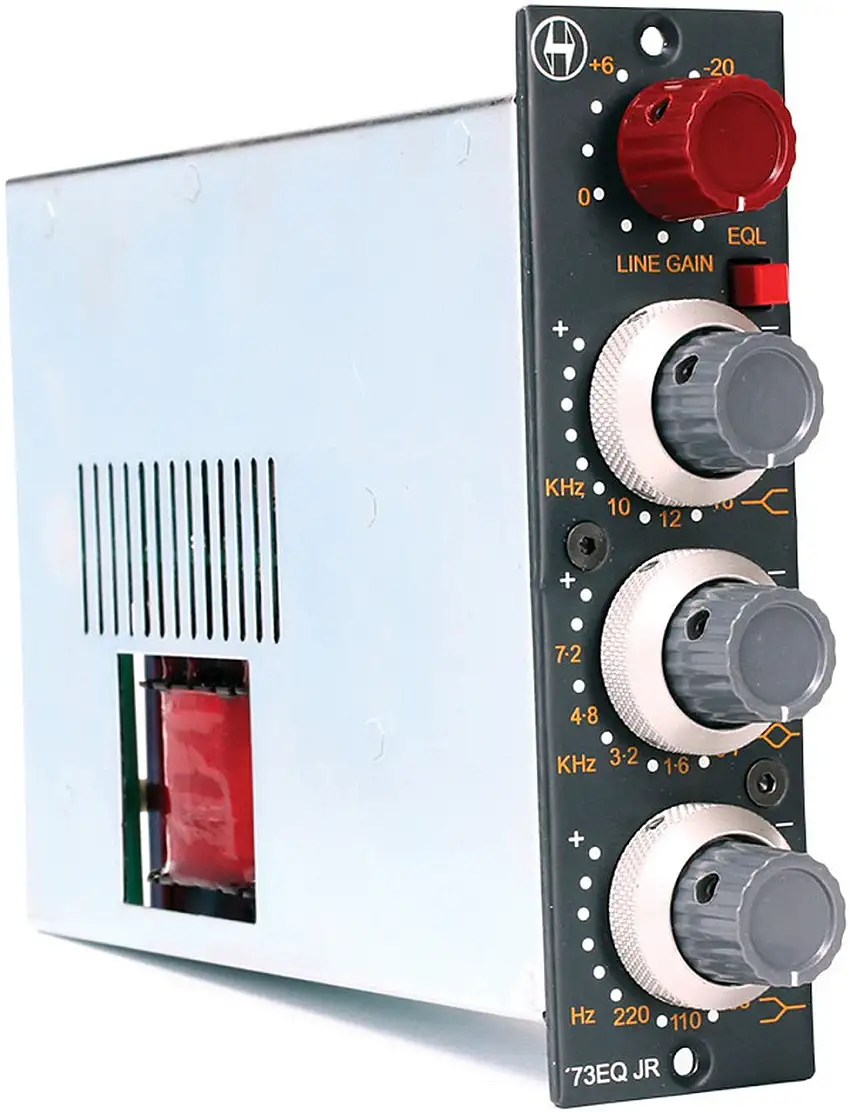

The 73EQ JR is a fully featured Line Input module for the 500 Series.It not only shares the 3-band Equalizer with his big brother, the Heritage Audio 1073, but also shares the same transformer coupled line preamp and Class A transformer balanced output stage.

• Input Impedance: 10 Kohms bridging, transformer balanced and floating.
• Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a 600 ohms load.
• Maximum output: Greater than +26dBu into 600 Ohms.
• THD: Less than 0.025% at 1Khz, less than 0.05% at 100Hz
• Maximum gain: 6 dB
• Power consumption: Less than 85 mA per rail at +-16VDC.
