Beskrivning

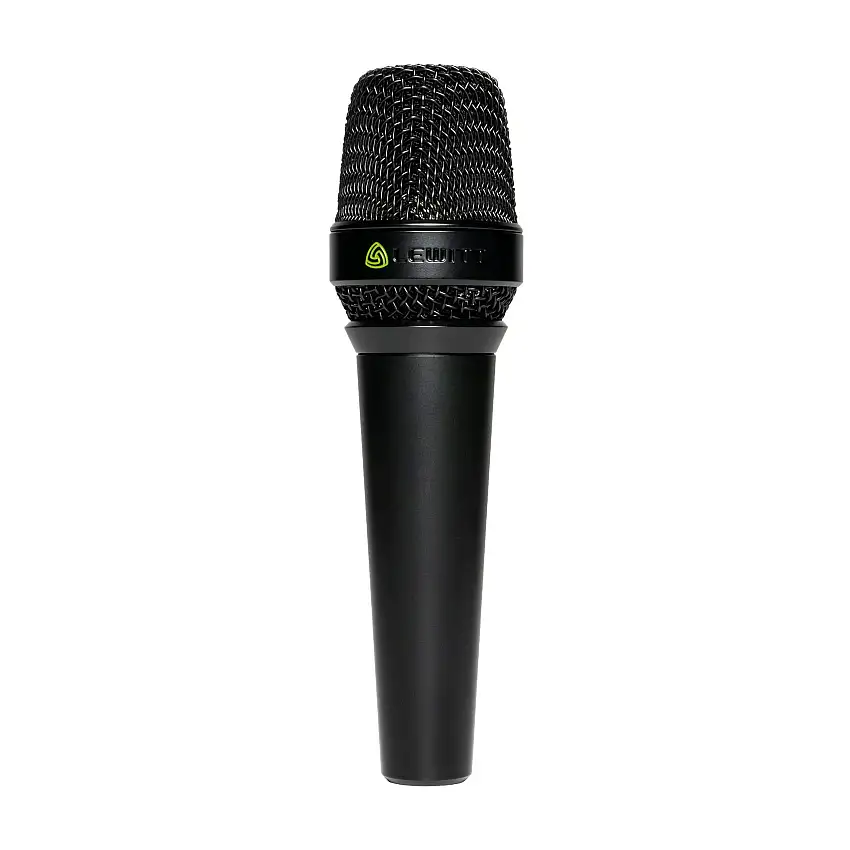

MTP 840 DM is a supercardioid handheld performance microphone. Its tailored frequency response ensures that your vocals will cut through every mix. The unique Active Mode boosts sensitivity by up to 12 dB while output impedance stays low.

Refined electronics and superior capsule design make the MTP 840 DM a unique tool for onstage use.

• Dynamic vocal microphone
• Active mode to boost sensitivity
• Tailored vocal sound
• Low-cut settings
• Supercardioid pattern



Specification:

Type – Dynamic, moving coil

Acoustical operating principle – Pressure gradient transducer

Polar pattern – Supercardioid

Sensitivity – 3.5 mV/Pa, -49 dBV/Pa

Signal / noise ratio – 75 dB (A)

Self-noise – 19 dB (A)

Dynamic range, passive mode – 135 dB

• 121 dB, 0 dB gain
• 115 dB, 6 dB gain
• 109 dB, 12 dB gain

Dynamic range, active mode –

Gain settings, active mode – 0 dB, 6 dB, 12 dB

• 150 Hz (12 dB/oct)
• 250 Hz (12 dB/oct)

Low-cut filter – linear

Internal impedance – 600 Ω

Supply voltage – 48 V ± 4 V

Current consumption – 5.5 mA

Connector – Gold plated 3-pin XLR

Microphone dimensions – 51 dia. x 183 mm, 2 dia. x 7.2 in

Microphone net weight – 336 g, 11.85 oz
