Beskrivning

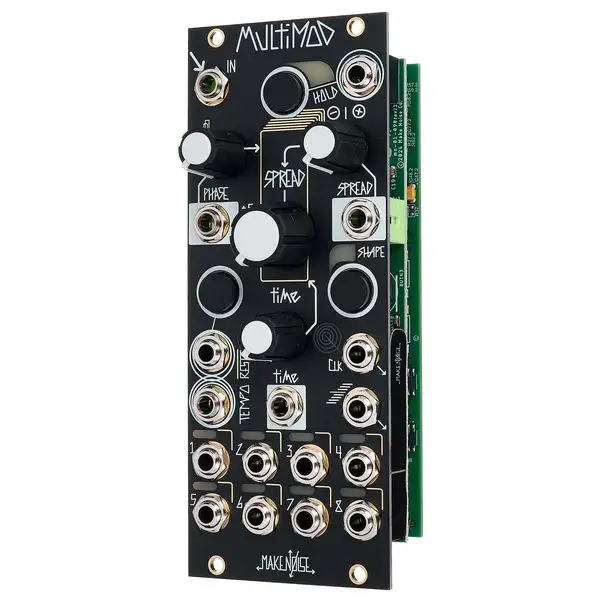

Eurorack Module

Multi-Channel Modulation Source
MultiMod distributes an incoming modulation signal (e.g. LFO, sequencer, envelopes) to 8 outputs, whose relations can be changed with three parameters
‘Phase’ shifts the phase position of the 8 outputs to the input signal
‘Spread’ changes the playback tempo of the 8 outputs to the input signal
‘Time’ determines the time range that is recorded and manipulated by the input signal
CV inputs for phase, spread and time
Hold button with gate input for looping the incoming signal
Tempo and reset inputs as well as clock output for synchronisation with other modules
Acts as an 8-channel LFO if no input signal is patched
8 CV outputs (range: -10 V to +10 V)
Current requirement: 195 mA (+12 V) / 10 mA (-12 V)
Width: 10 HP
Depth: 39 mm
