Beskrivning

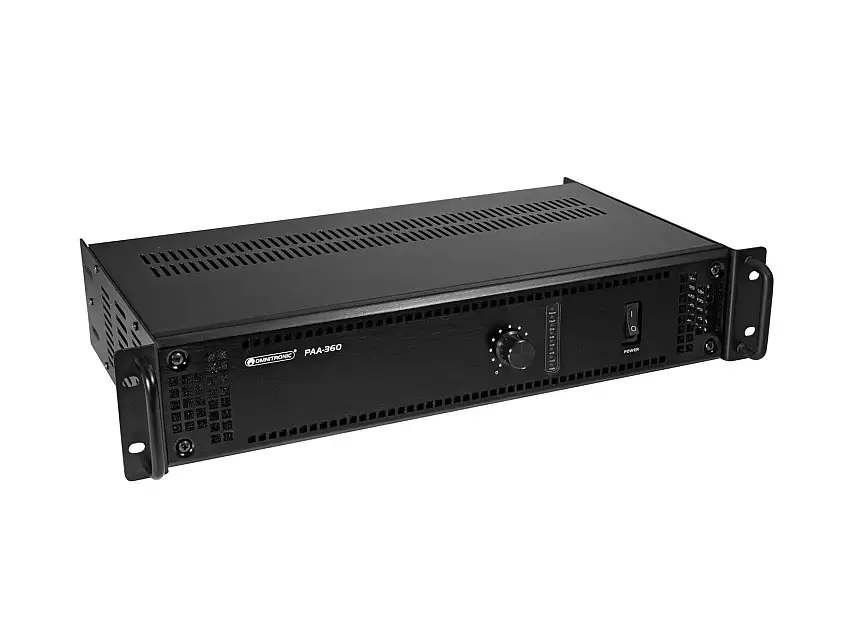

PA power amplifier, 360 W RMS
- 1 line input (XLR and 6.3 mm jack)
- 1 feed-through output (optionally XLR or 6.3 mm jack)
- Master control
- LED indicators for power, level, clip and fault
- (19″) 48.3 cm rack installation 2 U
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Scope of delivery
- 1 x amplifier
- 1 x user manual
- 2 x holder
- 4 x screw
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 720 W |
| Output power: | 360 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Frequency range: | 80 – 16000 Hz |
| S/N ratio: | >90 dB |
| THD: | <0.5 % at 1 kHz |
| Impedance: | 4-16 ohms; public address systems 100V; Public address systems 70V |
| Circuitry: | Class AB |
| Controls: | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: | Level meter, power, fault, clip |
| Connections: | Input: line via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 1 x 3-pin XLR 0.8 V Output: line via 1 x 6.3 mm jack socket (mono) mounting version Output: line via 1 x 3-pin XLR |
| Housing design: | (19″) 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 38.5 cm Height: 9.2 cm |
| Weight: | 6.80 kg |
