Beskrivning
Flerfrekvenssändare för W.A.M.S.-05

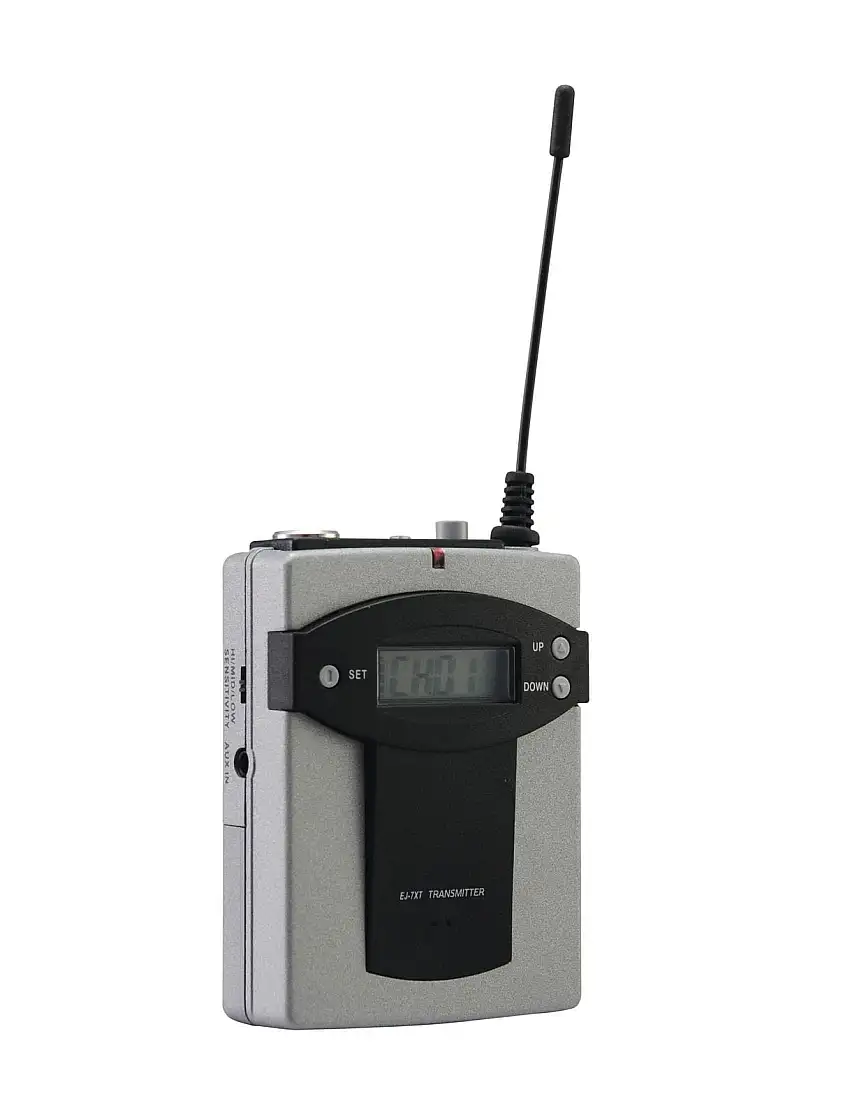

Multifrequency transmitter for the WAMS-05
- Operation in the low-interference UHF band
- Sensitivity adjustable
- Polar pattern: Omnidirectional
- Operating range up to 70m with line-of-sight
- UHF 863 – 865 MHz License-free and approved in Europe
- LCD display
- Charge status indicator
Scope of delivery
| Type: | Bodypack with microphone |
| Power connection: | Battery/battery pack |
| Capsule type: | Condenser |
| Polar pattern: | Omnidirectional |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 – 18000 Hz |
| Range: | Range up to 70m with line-of-sight |
| Frequency band: | UHF 863 – 865 MHz |
| Frequency stability: | ± 0.005 % |
| RF power output: | 10 mW |
| Modulation: | FM |
| Display type: | LCD display |
| Display: | Charge status indicator , frequency , channel |
| Connections: | Input: microphone via 1 x mini XLR (M) 3-pin mounting version |
| Dimensions: | Width: 6.4 cm Depth: 2.6 cm Height: 8.8 cm |
| Weight: | 0.186 kg |
