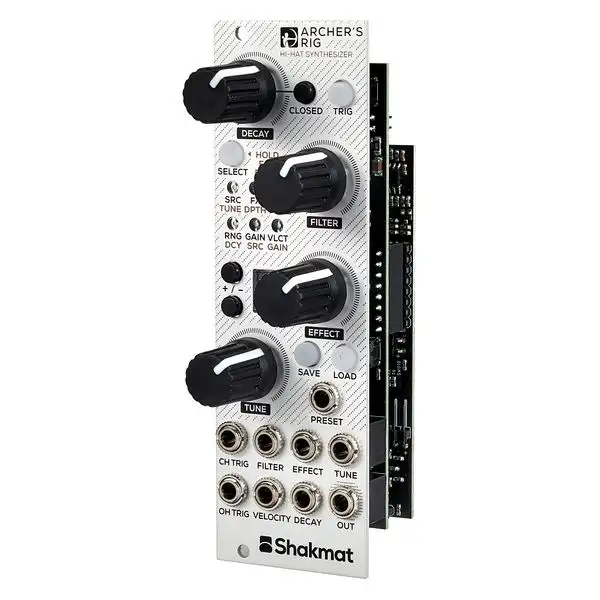

Eurorack Module

Hi-Hat and percussion synthesiser and noise generator with hybrid sound generation
Digital sound source with 13 selectable algorithms (noise, sine, bell, metal, FM, 808, 909, grains and more) and external mode for processing external signals through the analogue signal path
Digital effects section with 9 selectable algorithms (Ring Modulation, FM, Comb Filter, Sample Rate Reducer and more)
VCA (voltage controlled amplifier) with decay envelope
Analogue multimode filter with resonance and additional low-cut filter
Analogue gain and distortion stage
Controls for decay, filter, effect and tune – each with CV input
Trigger button and trigger inputs for open hi-hat and closed hi-hat
CV inputs for velocity and preset selection
Memory locations for 96 presets and randomiser function
Compatible with Select Bus protocol
Power requirement: 105 mA (+12V) / 45 mA (-12V)
Width: 8 HP
Depth: 21 mm
