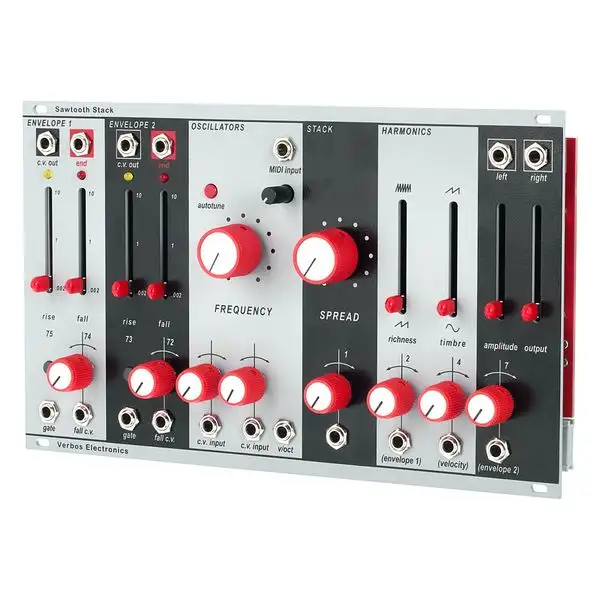

Eurorack Module
- West-Coast synthesiser voice
- 5 Discrete oscillators with common controls for coarse and fine tuning, two CV inputs with attenuators, pitch CV input (V/oct.) and autotune button (functions: Tuning and calibration of the oscillators, MIDI learn and MIDI panic)
- Spread control with CV input and attenuator for distributing the 5 voices in the stereo panorama
- Harmonics section with setting options for timbre (fading from sine to sawtooth) and richness (waveshaper) as well as CV inputs and attenuators for both parameters
- Stereo VCA with amplitude and output controls and CV input with attenuator
- 2 Envelopes, each with controls for attack and decay time, decay CV input with attenuator, gate input and button, signal and pulse output
- All parameters controllable via MIDI CC commands
- Current requirement: 320 mA (+12 V) / 240 mA (-12 V)
- Width: 42 HP
- Depth: 22 mm
30 30 dagar öppet köp 3 3 års Thomann garanti
- Tillgänglig sedanOktober 2024
- Artikelnummer 601284
- försäljningsenhet1 Styck
- Width 42 TE / HP
