Beskrivning

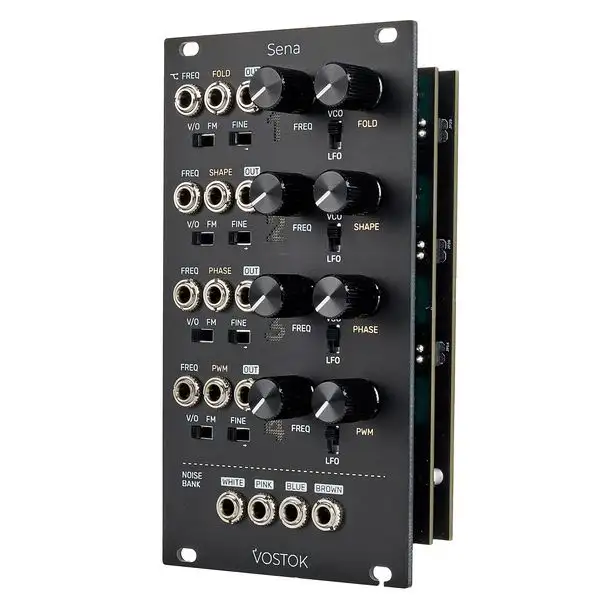

Eurorack Module

4-Channel oscillator and noise source
4 Separate oscillators based on the CEM3340 chip and with a different sound spectrum per channel
Channel 1: Sine waveform with two-stage wave folder and fold control with CV input
Channel 2: Triangle waveform with waveshaper and shape control with CV input
Channel 3: Saw rate waveform with phase shifting and phase control with CV input
Channel 4: Square waveform with adjustable pulse width and PWM controller with CV input
Per channel: Tuning control with selectable tuning range (6 octaves / 2 semitones), pitch/FM input, switchable LFO mode and waveform output
Noise bank with outputs for white, pink, blue and brown noise
Current requirement: 130 mA (+12 V) / 130 mA (-12 V)
Width: 14 HP
Depth: 30 mm
