Beskrivning

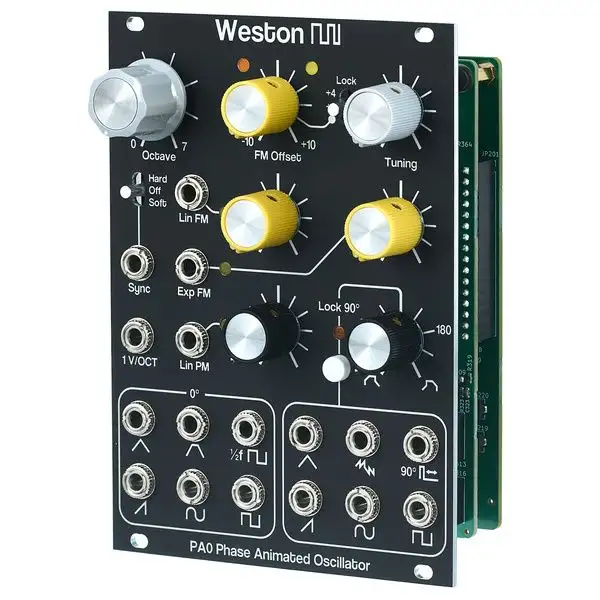

Eurorack Module
- 8-Step octave selector switch and control for fine tuning
- Through-Zero FM with linear CV input, attenuator, FM index control and two selectable fixed index values
- Exponential FM input with attenuator
- 6 Waveform outputs: sine, triangle, sawtooth, square and square sub-octave
- Second group of 6 waveforms that can be shifted in the range from 0° to 180° and beyond
- Lock switch for exact 90° phase shift
- CV input with attenuator for linear through-zero phase modulation
- Sync input with selector switch for hard sync, off or soft sync
- Current requirement: 110 mA (+12 V) / 95 mA (-12 V)
- Width: 18 HP
- Deth: 25 mm
30 30 dagar öppet köp 3 3 års Thomann garanti
- Tillgänglig sedanOktober 2024
- Artikelnummer 600143
- försäljningsenhet1 Styck
- Analogue Yes
- Digital No
- Width 18 TE / HP
